Ceiling Fan Connection Diagram With Capacitor
To do the ceiling fan connection with capacitor or replacing the capacitor in fan fallow the steps.
Ceiling fan connection diagram with capacitor. In this below diagram i shown the ceiling fan motor and its connection point where the capacitor instilled. During this article we have a tendency to discuss the wiring of ceiling fans and a circuit diagram of ceiling fans. Cbb61 fan capacitor wiring diagram rh 67 ala archa2018 uk collection hunter ceiling fan switch wiring diagram pictures 11 3 exhaust c61 wiring diagram iae bibliofem nl u2022 rh license lighted doorbell hampton bay ceiling fan ef200da 52 switch blown motor capacitor. If you know a specific method to do so let us know in the comment box below.
This is a simple illustrated circuit diagram of ceiling fanto be noted that the wiring diagram is for ac 220v single phase line with single phase ceiling fan motor. In the above ceiling fan capacitor wiring diagram i shown a symbol diagram of fan motor winding in which i shown start run and common wiresi connect the common wire connection with one connection connector and then i connect the run wire to the other wire connector as i shown in above diagram with blue color line. In the above ceiling fan capacitor replacing tutorial we showed three methods to change and replace a faulty ceiling fan capacitor and will add more wiring tutorials in the future. Now come to explain it using a simple clip art replacing capacitor in ceiling fan diagram.
For example your fan capacitor is blown and you want to change it with new one then the first option to check the number of old capacitor. Produced from superior quality aluminum alloy on high pressure die casting machines fan housing defines the external shape of the fan. The ceiling fan has capacitor begin electrical device run motor. Ceiling fan capacitor connection diagram.

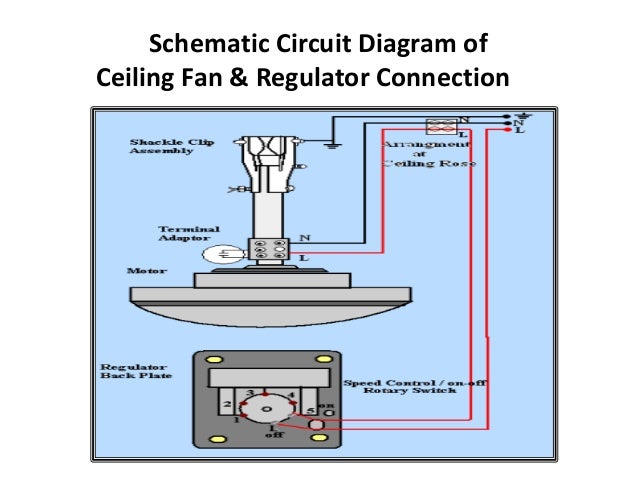

These motors have the electrical device asynchronous with the beginning winding. Here a simple spst switch is used to supply power or not to the fan motor and a regulator is used to controlling the fan speed. Connection of fan circuit diagram with capacitor table fan affiliate havells leganza 1200mm ceiling fan. High quality material not only gives strength.
First of all switch off your main circuit breaker to do safe from electrical accidents.
